Admin Frontend Guide

Who is this for?

Foundation administrators, operators, and anyone using the Centurion Admin web interface to manage validator seats, operators, users, and allowlist settings.

The Admin Frontend is a Next.js application that provides a visual interface for all Seat Manager operations. It connects to the Fastify API backend and supports the full seat lifecycle — from creation through activation — with built-in safety confirmations for every on-chain action.

---

Starting the Admin Frontend

# Terminal 1: Start the API backend
DATABASE_URL="postgresql://..." \
ADMIN_TOKEN="your-secure-token" \
SEAT_MANAGER_OWNER_PRIVATE_KEY=0x... \
  node dist/index.js api-v2 --port 8080

# Terminal 2: Start the admin frontend (port 3003, proxies API to :8080)
cd apps/admin && npm run dev

Open http://localhost:3003 in your browser.

HTTPS staging cookie setting

If you run the admin/API behind HTTPS in staging with NODE_ENV not equal to production, set SEAT_MANAGER_SECURE_COOKIES=true so session and CSRF cookies are sent with the Secure attribute.

---

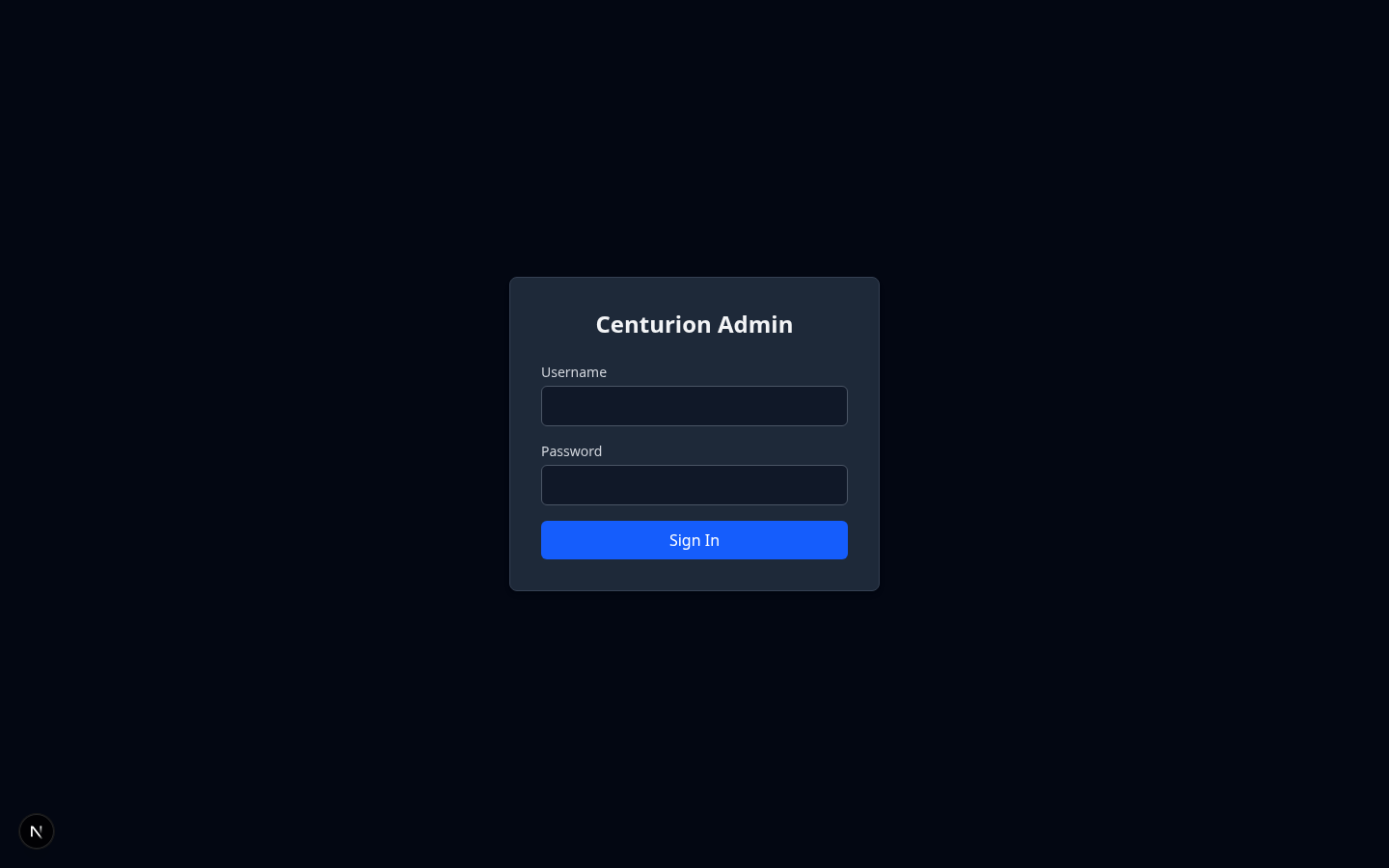

Login

The login page prompts for username and password. Authentication is session-based — a session token is issued on successful login and used for all subsequent API requests.

Field	Requirement
Username	Required
Password	Required

After login, you are redirected to the Dashboard. Your username and role are displayed in the sidebar.

---

Sidebar Navigation

The left sidebar is always visible and provides access to all sections:

Page	Description
Dashboard	System health, seat overview, alerts, recent activity
Seats	Full seat lifecycle management
Operators	Operator entity management
Users	User accounts and RBAC (ADMIN only)
Audit Log	Searchable history of all actions
Settings	Allowlist controls and freeze pipeline

The sidebar also shows the logged-in user's name and role, and provides a Logout button.

---

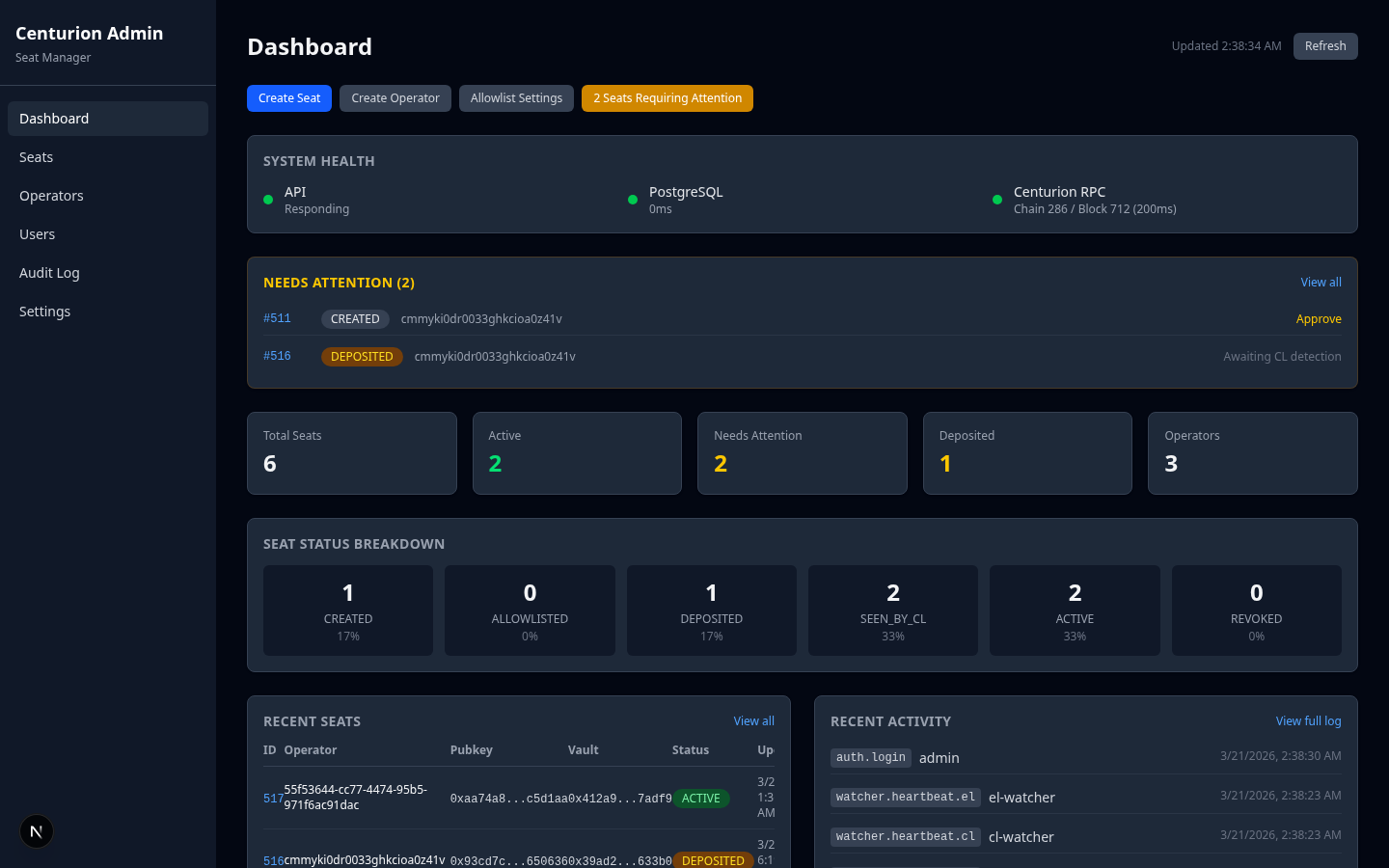

Dashboard

The Dashboard provides a high-level operational overview.

Quick Actions

The top bar offers shortcut buttons:

Button	Action
Create Seat	Opens the Seats page
Create Operator	Opens the Operators page
Allowlist Settings	Opens the Settings page
Seats Requiring Attention	Filters to seats needing action (shown only when applicable)

System Health

Three health indicators with latency measurements:

Indicator	What it checks
API	Backend is responding
PostgreSQL	Database connection and latency
Centurion RPC	Chain ID, current block number, RPC latency

Each indicator shows a green dot when healthy.

Needs Attention

Lists seats in intermediate states (CREATED, ALLOWLISTED, DEPOSITED) that require a manual action. Each entry shows:

• Seat ID (clickable link to detail page)
• Current status badge
• Operator name
• Suggested next action (e.g., "Approve", "Deposit", "Awaiting watcher")

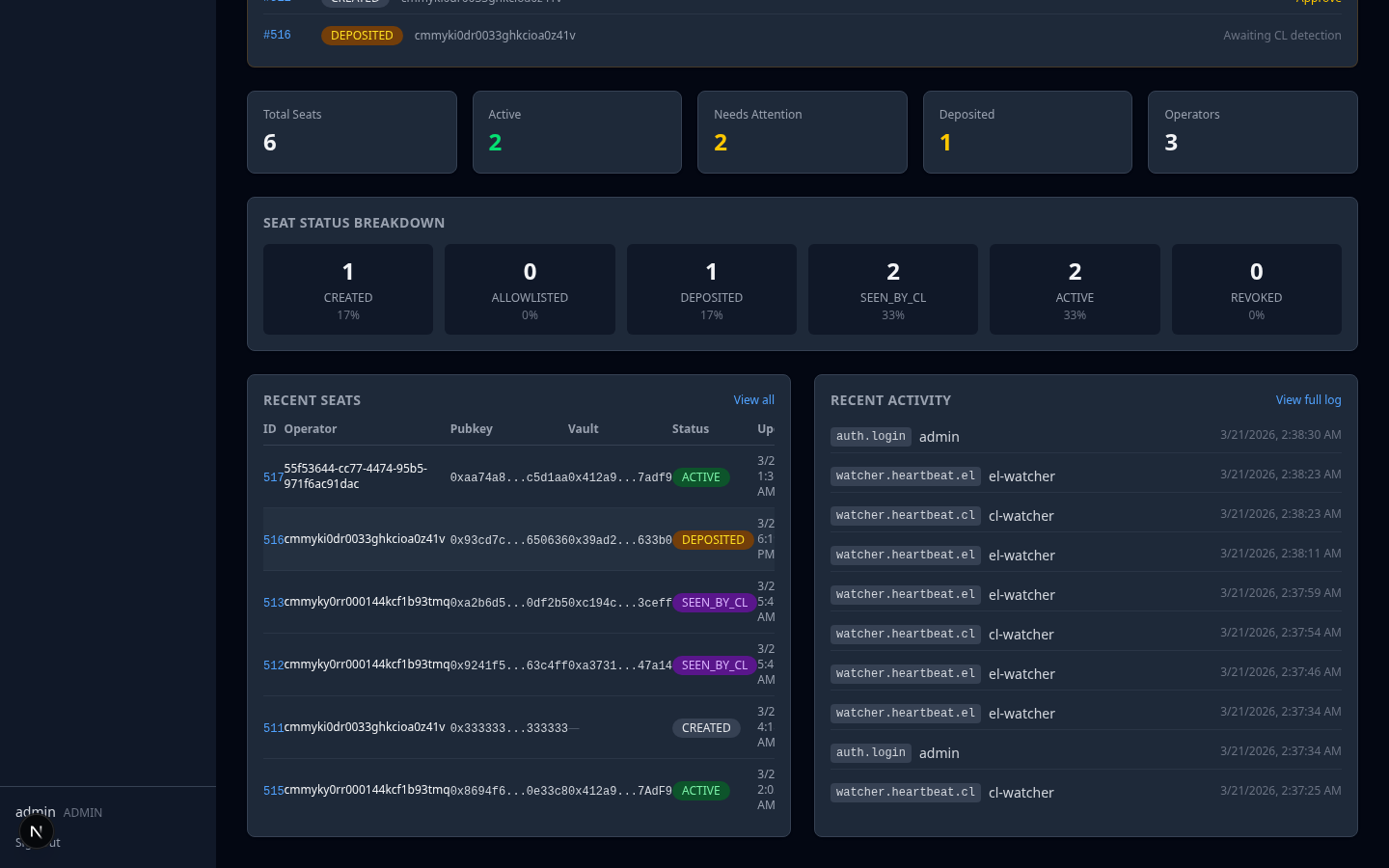

Seat Status Breakdown

Six cards showing the count and percentage of seats in each lifecycle state:

CREATED | ALLOWLISTED | DEPOSITED | SEEN_BY_CL | ACTIVE | REVOKED

Clicking a card navigates to the Seats page filtered to that status.

Recent Seats & Recent Activity

Recent Seats shows the 8 most recently updated seats with columns: ID, Operator, Pubkey, Vault, Status, and last update time.

Recent Activity shows the 10 most recent audit log entries with the action type, actor, associated seat, and timestamp. A "View Full Log" link opens the full Audit Log page.

---

Seats

The Seats page is the primary operational interface. It supports the full validator seat lifecycle.

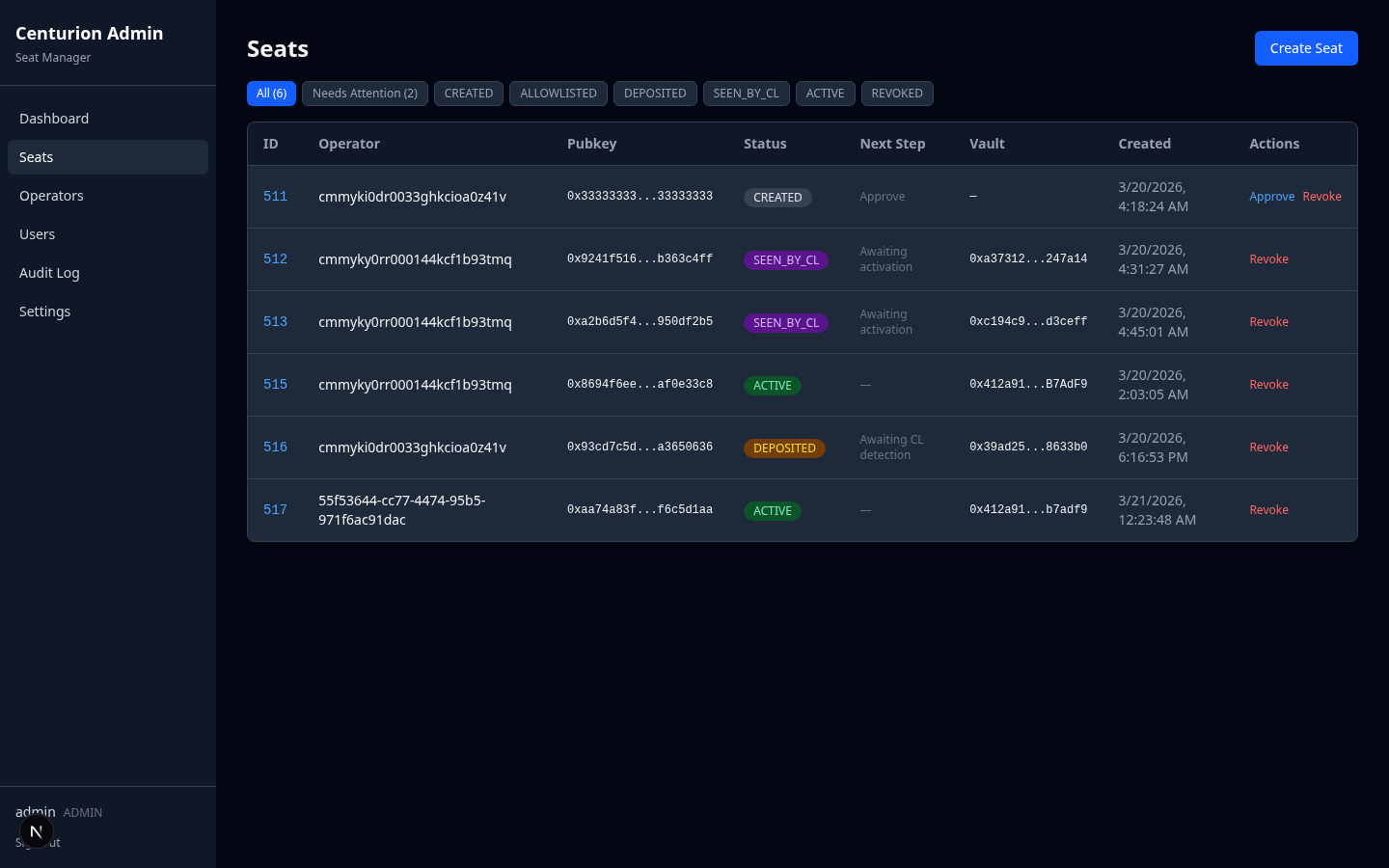

Seat List

Status filter tabs across the top let you filter seats by lifecycle state. Each tab shows the count of seats in that state. A special NEEDS_ATTENTION tab shows seats requiring manual action.

The table displays:

Column	Description
ID	Seat number (clickable — opens detail page)
Operator	Assigned operator name
Pubkey	BLS public key (truncated, copyable)
Status	Color-coded badge
Next Step	Suggested action based on current status
Vault	Vault contract address (truncated, copyable)
Created	Timestamp
Actions	Context-dependent action buttons

Row actions appear based on the seat's current status:

Status	Available Actions
CREATED	Approve, Revoke
ALLOWLISTED	Deposit, Revoke
DEPOSITED	Revoke
SEEN_BY_CL	Revoke
ACTIVE	Revoke
REVOKED	— (terminal state)

Creating a Seat

Click Create Seat to open the creation dialog. Three tabs offer different onboarding modes:

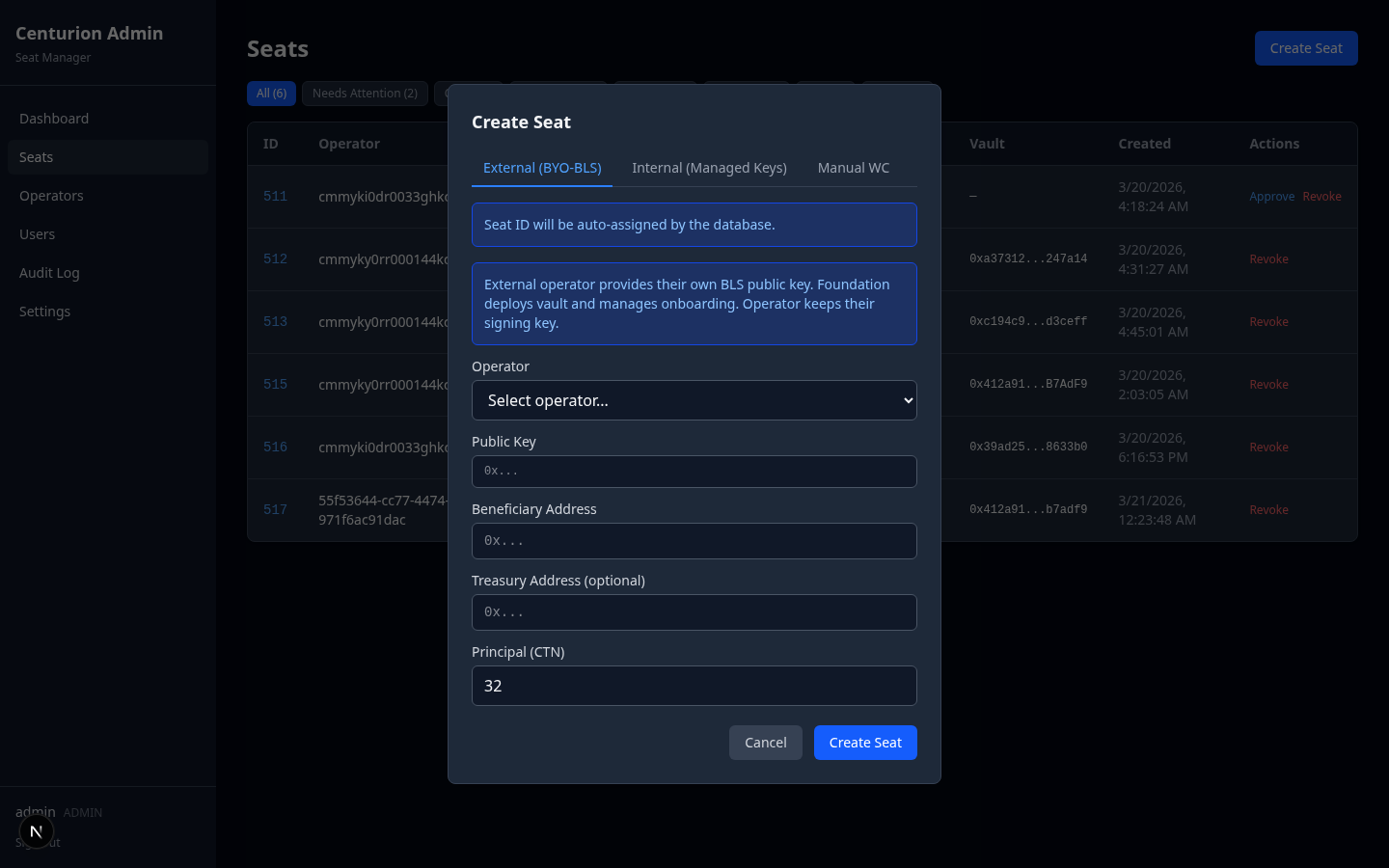

Tab 1: External (BYO-BLS)

The recommended path for external operators. The operator provides their own BLS public key — the foundation never touches the signing key.

Field	Description	Validation
Operator	Select from enabled operators	Required (dropdown)
Public Key	Operator's BLS public key	0x + 96 hex characters
Beneficiary Address	Wallet that receives rewards	0x + 40 hex characters
Treasury Address	Foundation address for principal recovery (optional — defaults to owner)	0x + 40 hex characters
Principal (CTN)	Staked amount	Default: 32

This atomically deploys a WithdrawalVault on-chain, derives withdrawal credentials from the vault address, and creates the seat in CREATED status.

After creation, share the vault address with the operator so they can generate deposit data signed over the vault's withdrawal credentials.

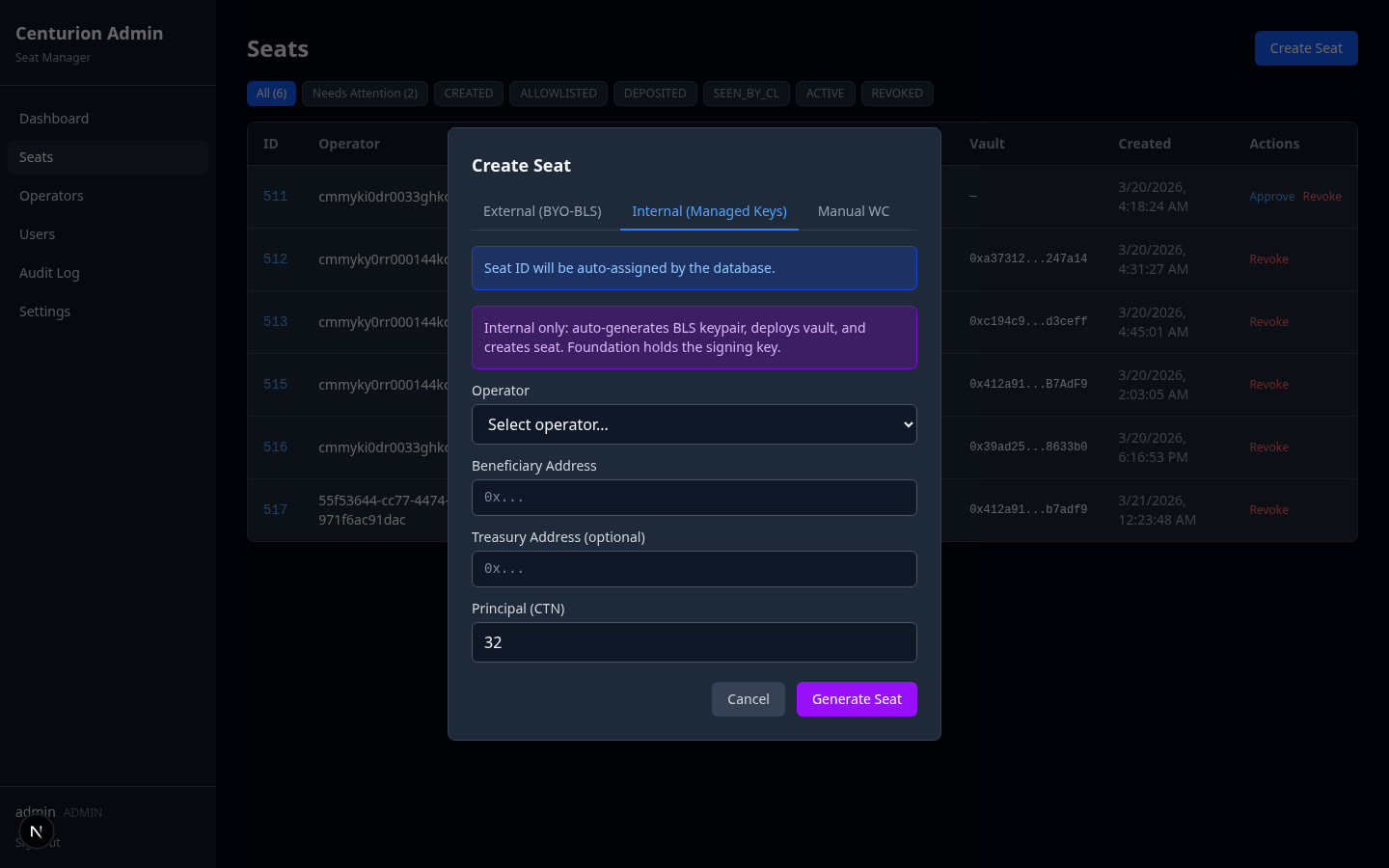

Tab 2: Internal (Managed Keys)

For foundation-managed validators only. Auto-generates a BLS keypair from the foundation's mnemonic.

Do not use for external operators

This flow creates key custody obligations. Use the External (BYO-BLS) tab for external operators.

Field	Description
Operator	Select from enabled operators
Beneficiary Address	Wallet that receives rewards
Treasury Address	Optional (defaults to owner)
Principal (CTN)	Default: 32

This atomically generates a BLS keypair, deploys a vault, and creates the seat.

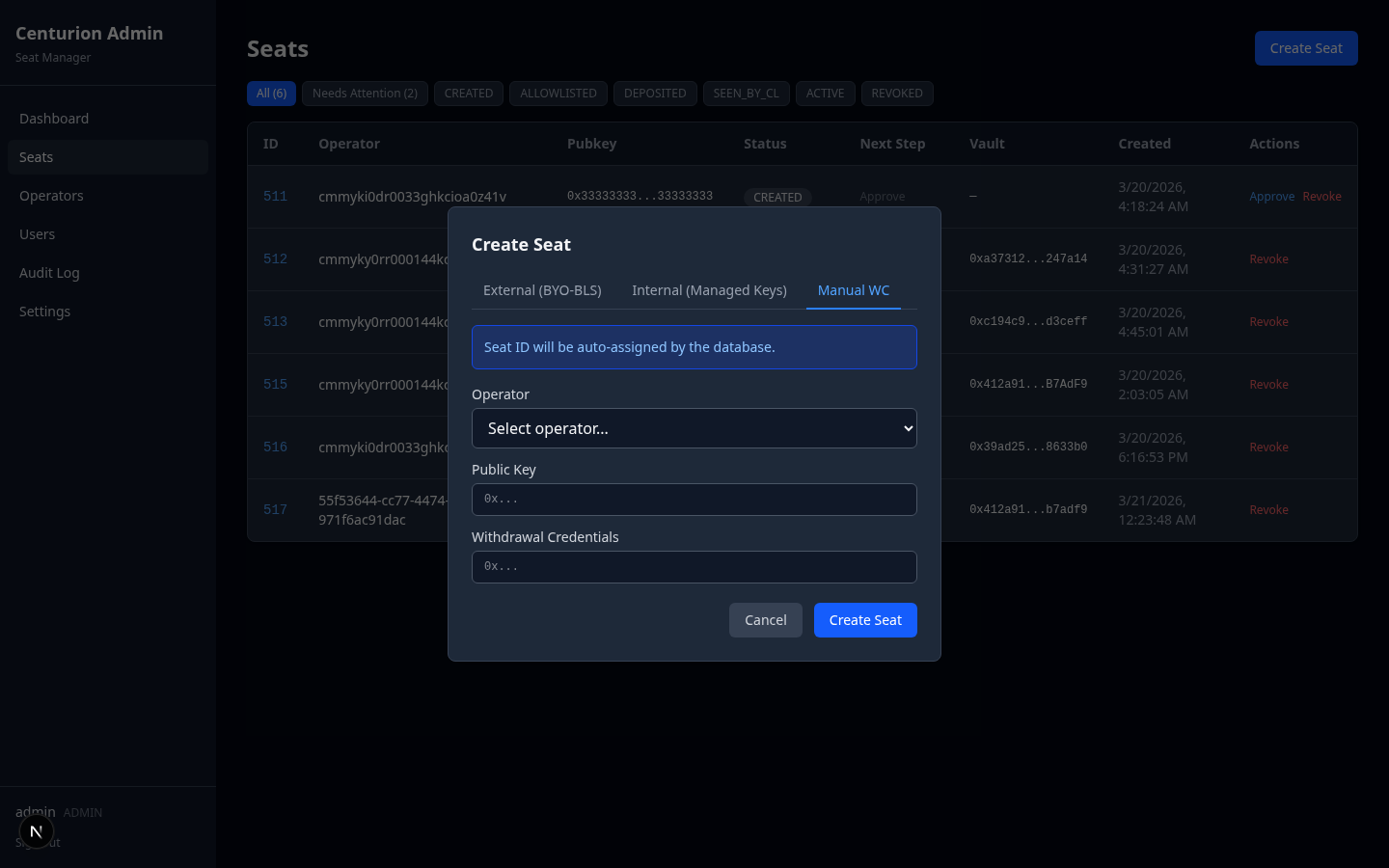

Tab 3: Manual WC

For advanced use cases where withdrawal credentials are specified directly.

Field	Description	Validation
Operator	Select from enabled operators	Required
Public Key	BLS public key	0x + 96 hex characters
Withdrawal Credentials	Pre-computed WC	0x + 64 hex characters

This creates a seat record without deploying a vault. Use when the vault was deployed separately or WC points to a non-vault address.

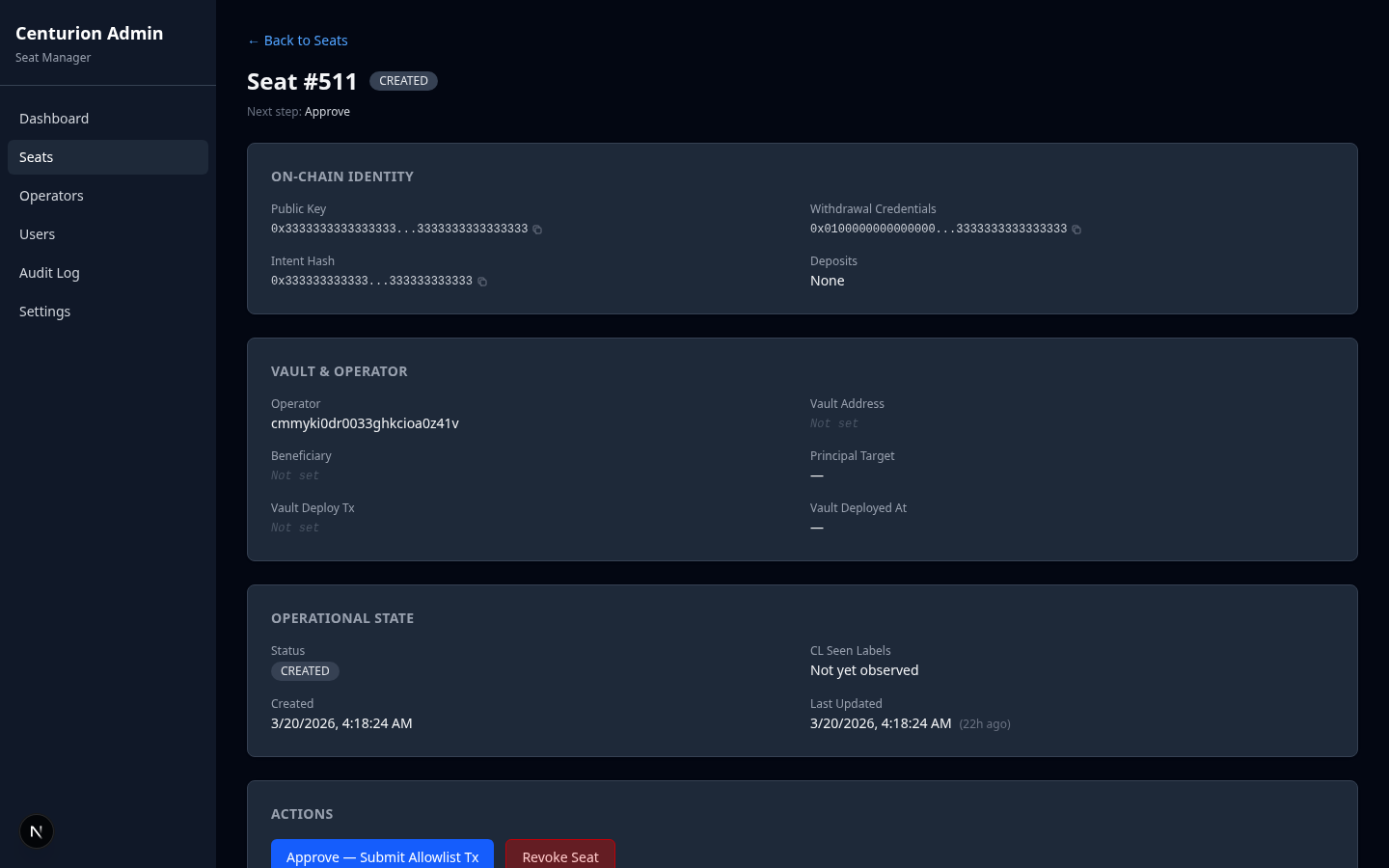

Seat Detail Page

Click any seat ID to open the detail view. This page shows the complete state of a single seat across four sections:

On-Chain Identity

Field	Description
Public Key	Full BLS pubkey (copyable)
Withdrawal Credentials	Full WC (copyable)
Intent Hash	keccak256(pubkey || wc || amountGwei || authorizedDepositor || ownershipEpoch) (copyable)
Deposits	Count and total Gwei from observed deposit events

Vault & Operator

Field	Description
Operator	Assigned operator name
Vault Address	Deployed vault contract (copyable)
Beneficiary	Reward recipient wallet (copyable)
Principal Target	Staked amount in CTN
Vault Deploy Tx	Deployment transaction hash (copyable)
Vault Deployed At	Deployment timestamp

Operational State

Field	Description
Status	Current lifecycle state (color-coded badge)
CL Seen Labels	Endpoint labels where the validator was observed on the beacon chain
Created / Updated	Timestamps with relative time display
Last Allowlist Action	Most recent on-chain allowlist operation (action type, result, tx hash, block)

Lifecycle Timeline

A visual timeline showing every status transition, including:

• Transition (e.g., CREATED → ALLOWLISTED)
• Actor who triggered the transition
• Reason (if provided)
• Timestamp

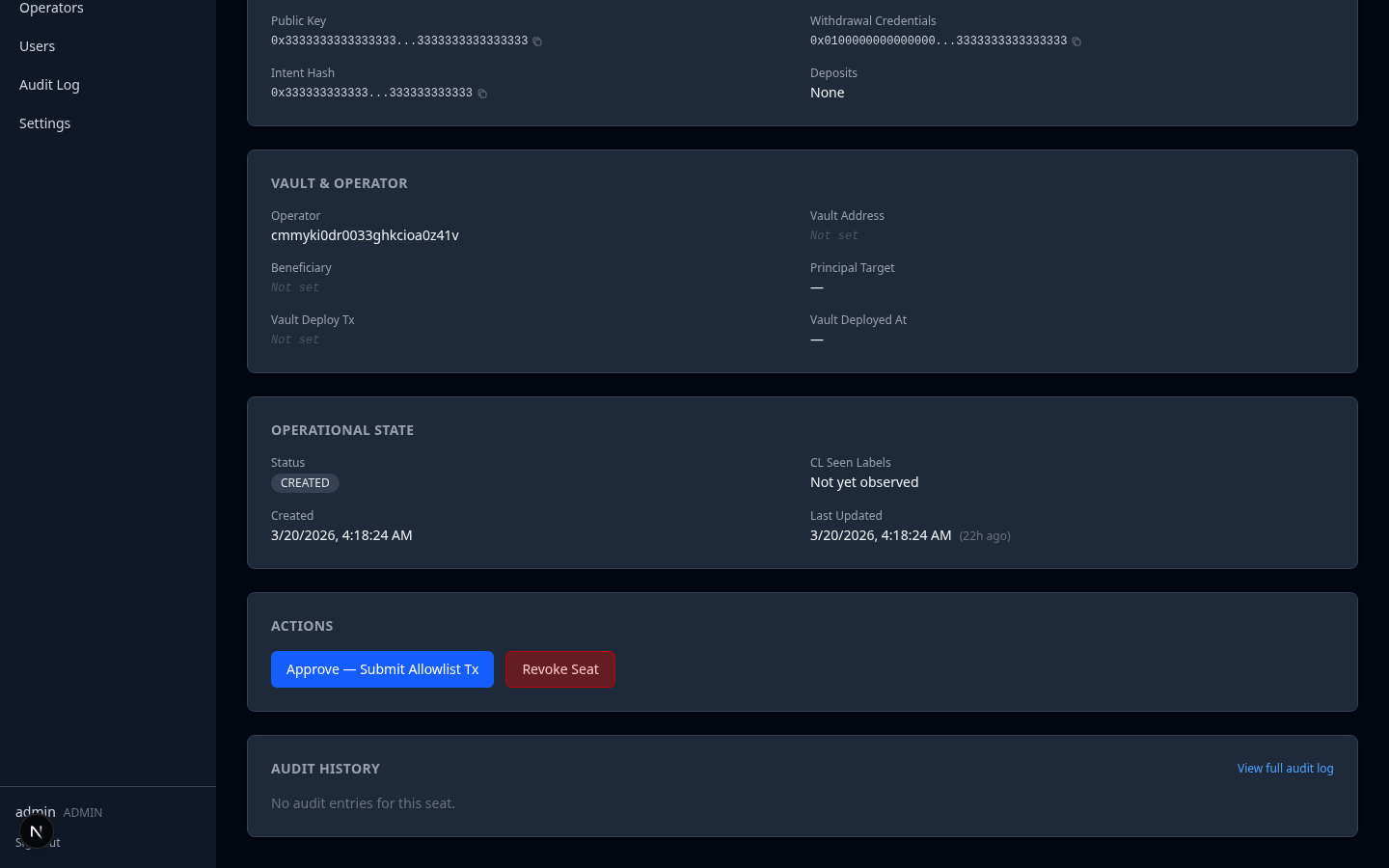

Audit History

The most recent audit log entries for this specific seat, with a link to the full audit log pre-filtered to this seat.

Actions

Action buttons appear at the bottom based on the seat's current status (same as the row actions on the list page). Each action opens a confirmation dialog.

Action Confirmation Dialogs

Every on-chain action requires explicit confirmation through a dialog. Safety gates increase with the severity of the action.

Approve

• Shows the pubkey and the status transition (CREATED → ALLOWLISTED)
• Explains that an addAllowedDeposit transaction will be submitted
• Single confirmation button

Deposit

• Shows the pubkey, deposit amount, and status transition (ALLOWLISTED → DEPOSITED)
• Requires checkbox acknowledgment: "I have verified the seat details and confirm this deposit"
• Notes that a real on-chain transaction transferring CTN will be submitted

Revoke

• Shows the pubkey, current status, and transition to REVOKED
• If the seat has on-chain deposits, displays a warning that revocation is operational only (deposits cannot be reversed)
• Requires typing REVOKE-<id> to confirm (e.g., REVOKE-42)
• Optional reason field

---

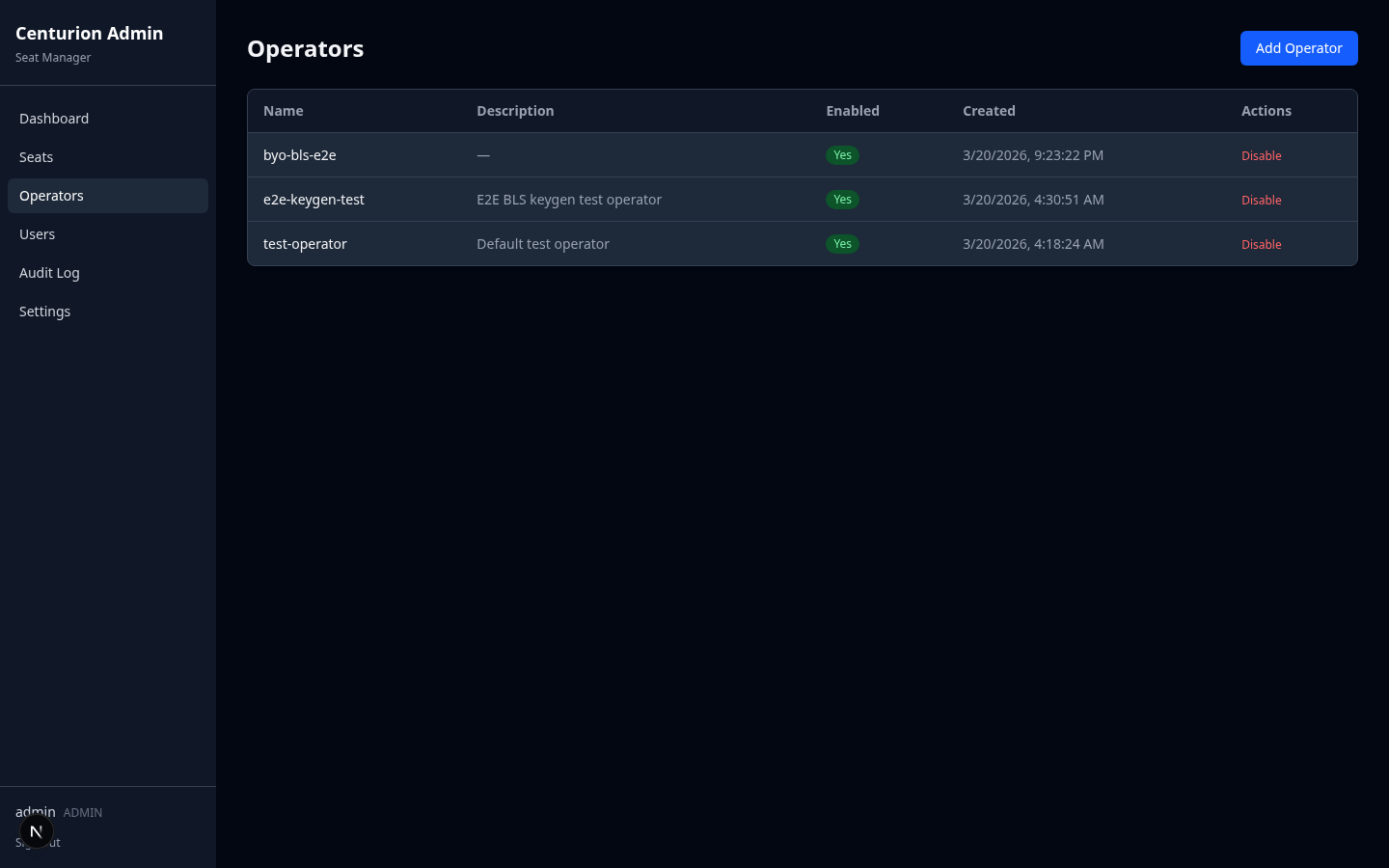

Operators

Operators are entities assigned to seats. Each seat belongs to exactly one operator.

Operator List

The table displays:

Column	Description
Name	Operator identifier
Description	Optional notes
Enabled	Green/red badge
Created	Timestamp
Actions	Enable/Disable toggle

Disabled operators cannot be selected when creating new seats.

Creating an Operator

Click Add Operator to open the creation dialog.

Field	Description	Validation
Name	Unique operator identifier	Required, 1–100 characters
Description	Optional notes	Up to 500 characters

Enabling / Disabling

Click Enable or Disable in the row actions. Disabling an operator prevents it from being assigned to new seats but does not affect existing seats.

---

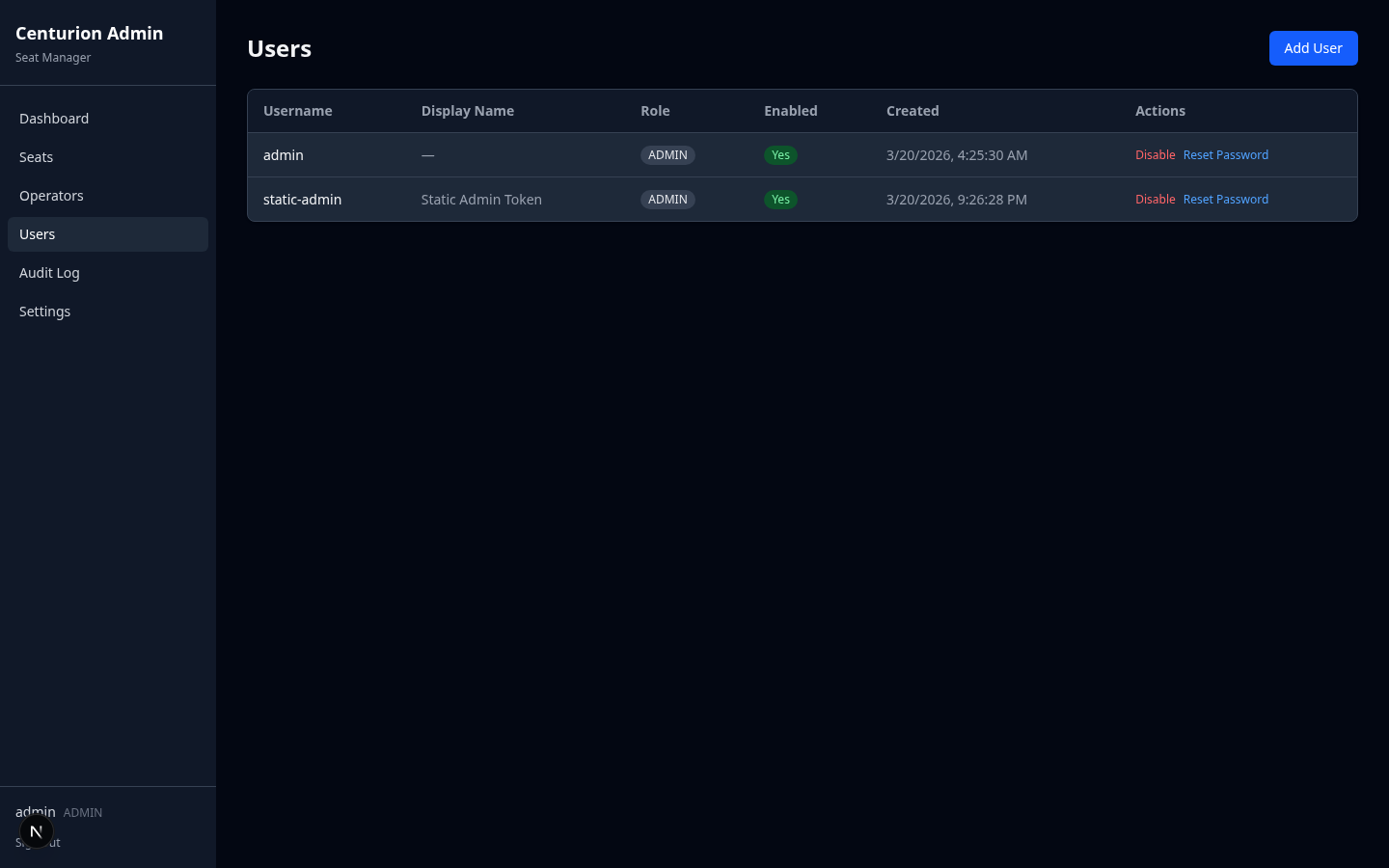

Users

ADMIN role required

The Users page is only accessible to users with the ADMIN role. Other roles see a permission notice.

User List

Column	Description
Username	Login name
Display Name	Friendly name
Role	ADMIN, OPERATOR, or VIEWER badge
Enabled	Green/red badge
Created	Timestamp
Actions	Enable/Disable, Reset Password

Creating a User

Click Add User to open the creation dialog.

Field	Description	Validation
Username	Login identifier	Required, 1–100 characters
Password	Initial password	Required, minimum 8 characters
Role	Permission level	VIEWER (default), OPERATOR, or ADMIN
Display Name	Friendly name	Optional, up to 200 characters

Role Permissions

Role	Can do
ADMIN	Everything: user management, create/approve/revoke/deposit seats, generate keys, allowlist controls, freeze
OPERATOR	Create seats, create operators, view all data
VIEWER	Read-only access to seats, operators, audit logs

Password Reset

Click Reset Password in the row actions. Enter a new password (minimum 8 characters). On success, all of the user's existing sessions are revoked — they must log in again with the new password.

Enabling / Disabling Users

Disabled users cannot log in. Their existing sessions are not automatically revoked — they expire naturally or can be revoked via password reset.

---

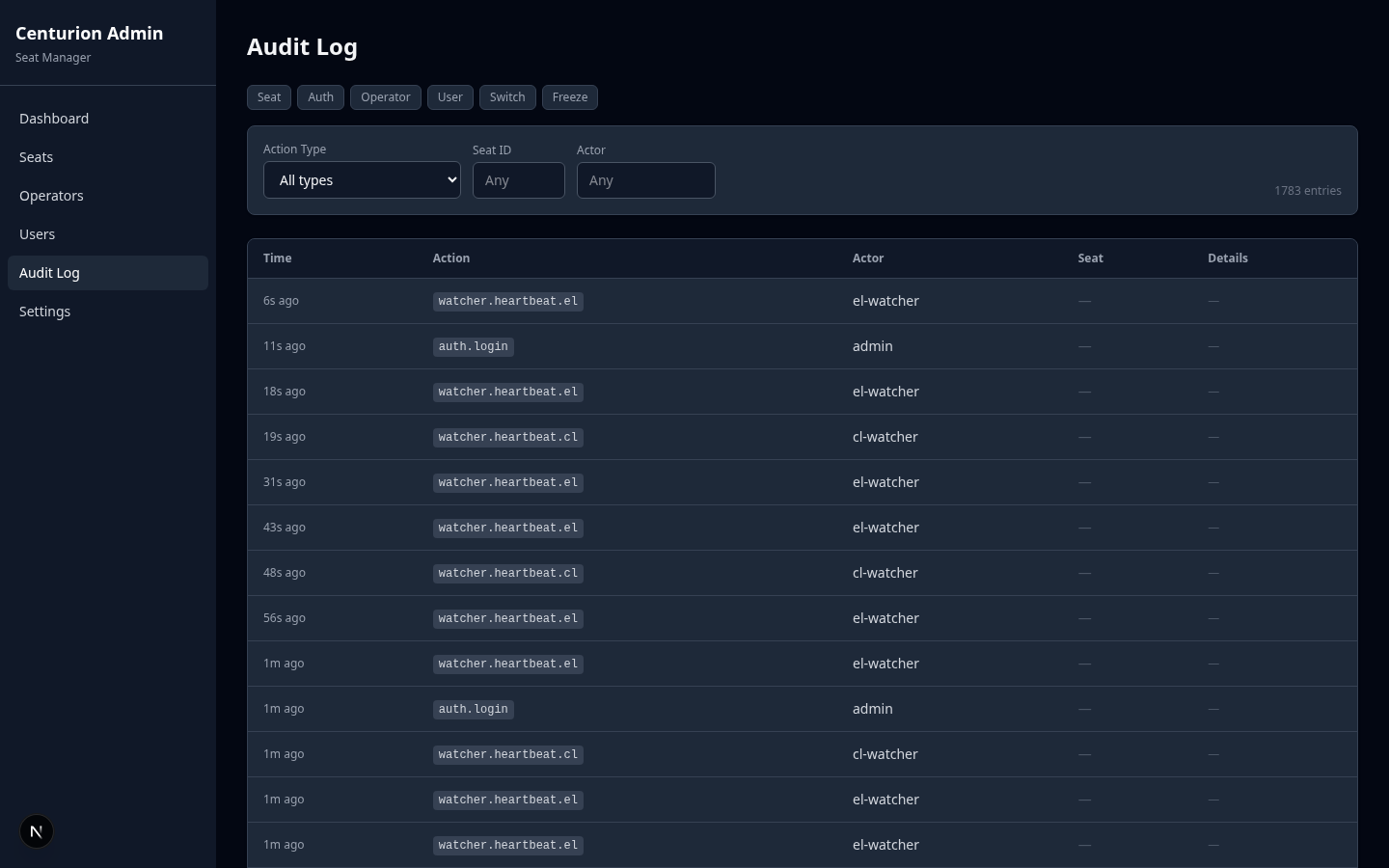

Audit Log

The Audit Log provides a searchable, paginated history of every action taken through the system.

Quick Filters

Filter buttons across the top let you quickly filter by action family:

Filter	Actions shown
Seat	All seat.* actions (create, approve, revoke, deposit, etc.)
Auth	Login and logout events
Operator	Operator create, enable, disable
User	User create, enable, disable, password reset
Switch	Allowlist enable/disable
Freeze	Freeze schedule, cancel, execute

Multiple filters can be active simultaneously. Click a filter again to deselect it.

Detailed Filters

Expand the filter section for more precise queries:

Filter	Description
Action Type	Specific action (dropdown populated from observed action types)
Seat ID	Filter to a specific seat
Actor	Filter by username

Audit Table

Column	Description
Time	Relative timestamp (hover for full date)
Action	Color-coded action badge
Actor	Username or system actor
Seat	Linked seat ID (if applicable)
Details	Reason or metadata (truncated, hover for full text)

Pagination shows 30 entries per page with Previous/Next controls.

---

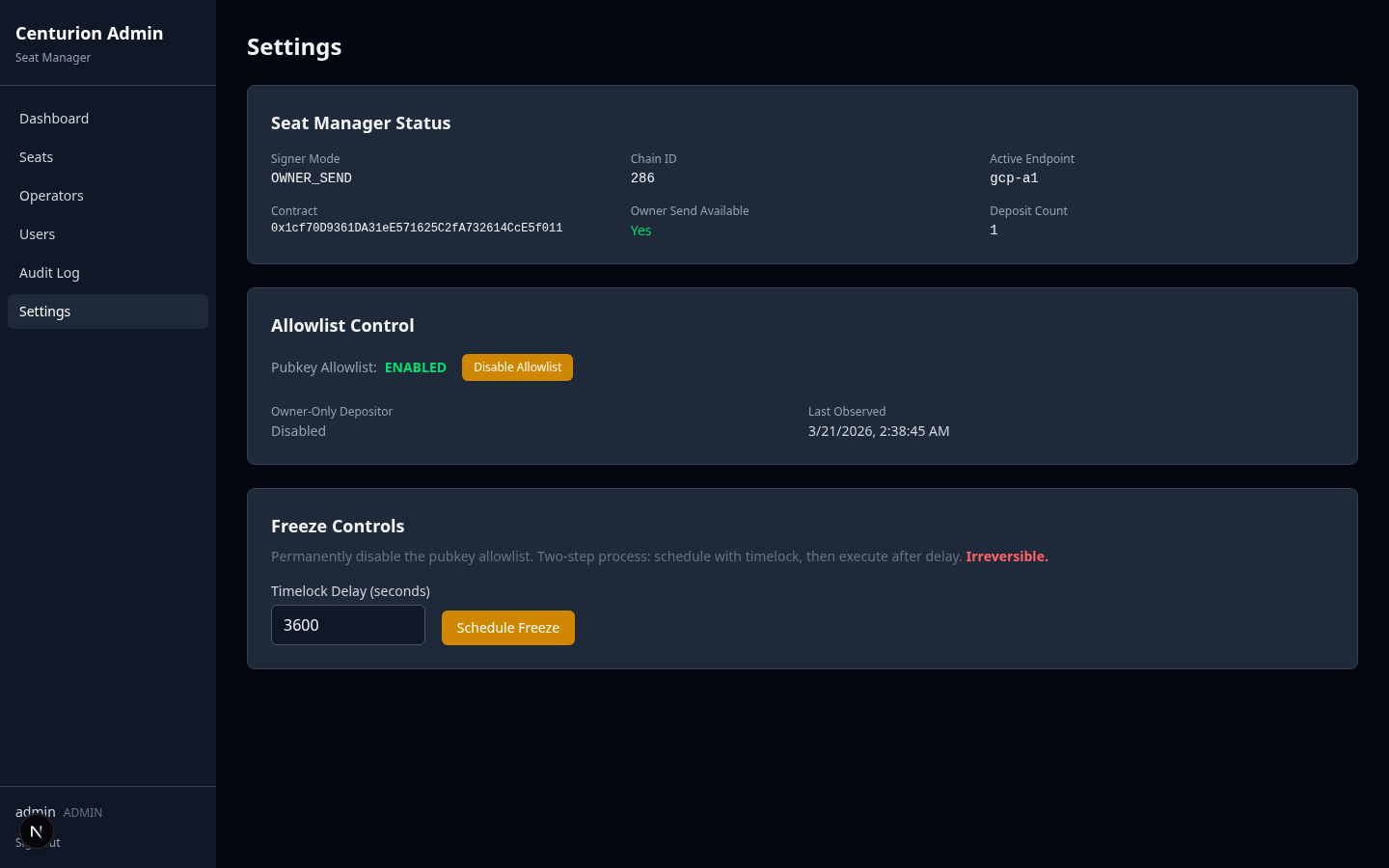

Settings

The Settings page controls the DepositContractCTN allowlist and freeze pipeline.

Seat Manager Status

Read-only panel showing current system configuration:

Field	Description
Signer Mode	How transactions are signed (local key, KMS, or propose-only)
Chain ID	Connected chain
Active Endpoint	Current node connection
Contract	Deposit contract address
Owner Send Available	Whether on-chain transactions can be sent (vs. propose-only mode)
Deposit Count	Number of deposits processed by the contract

Allowlist Controls

Displays the current state of the pubkey allowlist and owner-only depositor gates.

Enable / Disable Allowlist

Action	Effect	Confirmation
Enable Allowlist	Only allowlisted pubkeys can deposit	Simple confirmation
Disable Allowlist	Any pubkey can deposit (no allowlist gate)	Checkbox acknowledgment required

Both actions submit on-chain transactions (setPubkeyAllowlistEnabled).

Freeze Pipeline

The freeze pipeline permanently and irreversibly disables the pubkey allowlist. It uses a three-step process with a mandatory timelock.

Step 1: Schedule Freeze

Enter a timelock delay in seconds (default: 3600 = 1 hour). This sets the earliest time the freeze can be executed.

• Submits scheduleDisablePubkeyAllowlistForever on-chain
• The freeze cannot be executed until the timelock expires

Step 2: Wait or Cancel

While the timelock is counting down:

• A yellow alert shows the scheduled execution time
• Cancel Freeze is available to abort (resets the timelock to 0)

Step 3: Execute Freeze

Irreversible — no undo

Executing the freeze permanently disables the pubkey allowlist. This cannot be reversed by anyone, including the contract owner.

Once the timelock has expired, the Execute Freeze button becomes available. This action has the highest safety gates:

• Type to confirm: You must type FREEZE FOREVER exactly
• Checkbox: "I understand this action is permanent and irreversible"
• The button is red and clearly labeled as permanent

After execution, the Settings page shows a red banner: "The pubkey allowlist has been permanently disabled."

---

Safety Model

The admin frontend enforces progressive safety gates based on the severity of each action:

Action	Safety Gate
Create seat / operator / user	Simple confirmation
Approve seat	Confirmation dialog with transaction warning
Deposit CTN	Checkbox acknowledgment + transaction warning
Disable allowlist	Checkbox acknowledgment
Revoke seat	Type-to-confirm (REVOKE-<id>)
Reset password	Confirmation prompt
Execute freeze	Type-to-confirm (FREEZE FOREVER) + checkbox

All mutating POST requests include an Idempotency-Key header to prevent duplicate operations on network retries.
